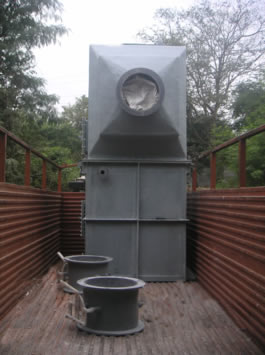

Cross Flow Packed Bed Scrubbers

Operating Principle :

            • Contaminated air moves horizontally through a packed bed .

            • It is irrigated /wetted by scrubbing liquid flowing down through the                packing

            • Mass transfer achieved by a combination of diffusion , physical absorption               and /or chemical reaction

            • Gas collection efficiencies a function of

            • Irrigation rates.

            • Packing depth .

            • Composition of Recirculating scrubbing liquids.

Benefits :

            • Low recirculation scrubbing liquid rates.

            • High volume air flow .

            • Low pressure drops .

            • Ideally suited for congested place Installations or where headroom is               limited

            • Supplied inbuilt with recirculation tank .

            • System Centrifugal fan can be connected directly to the scrubber outlet               saving space and cost.

            • Combined flexibility of efficient removal of gas , liquid or solid                contaminants from air streams .
